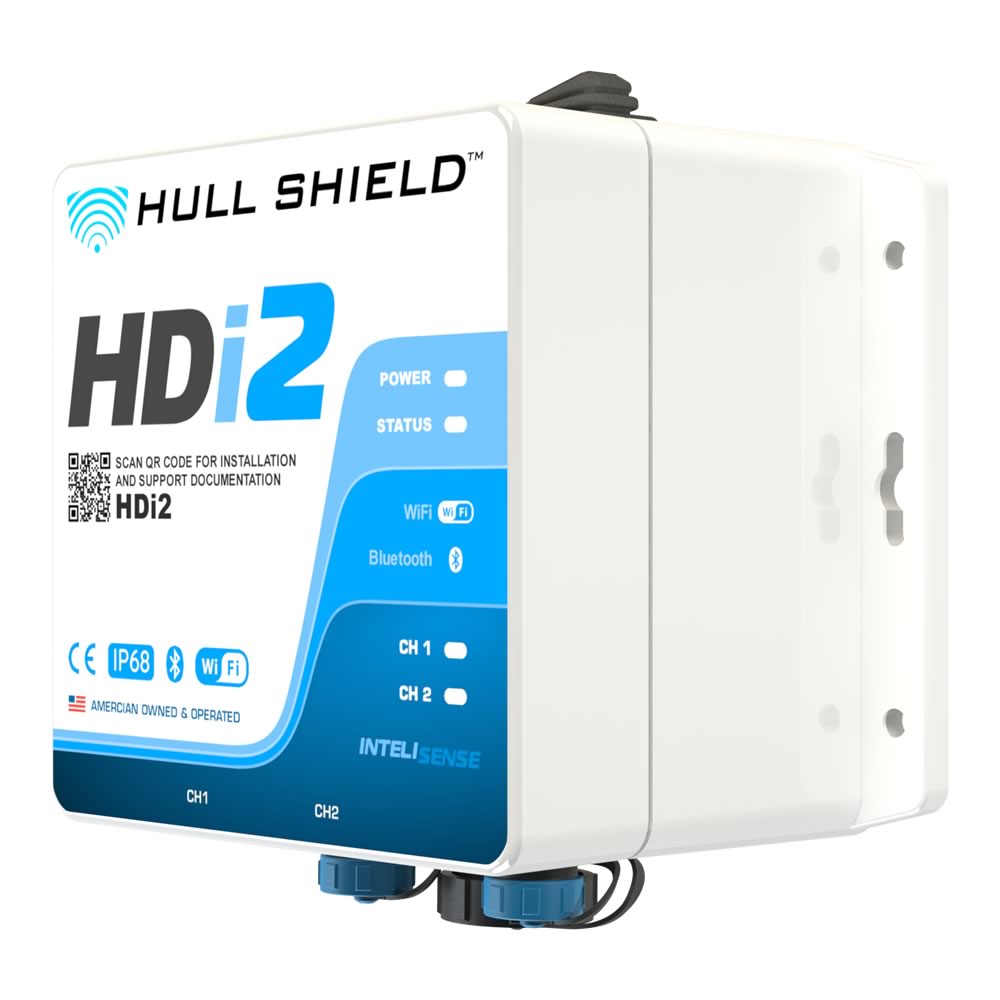

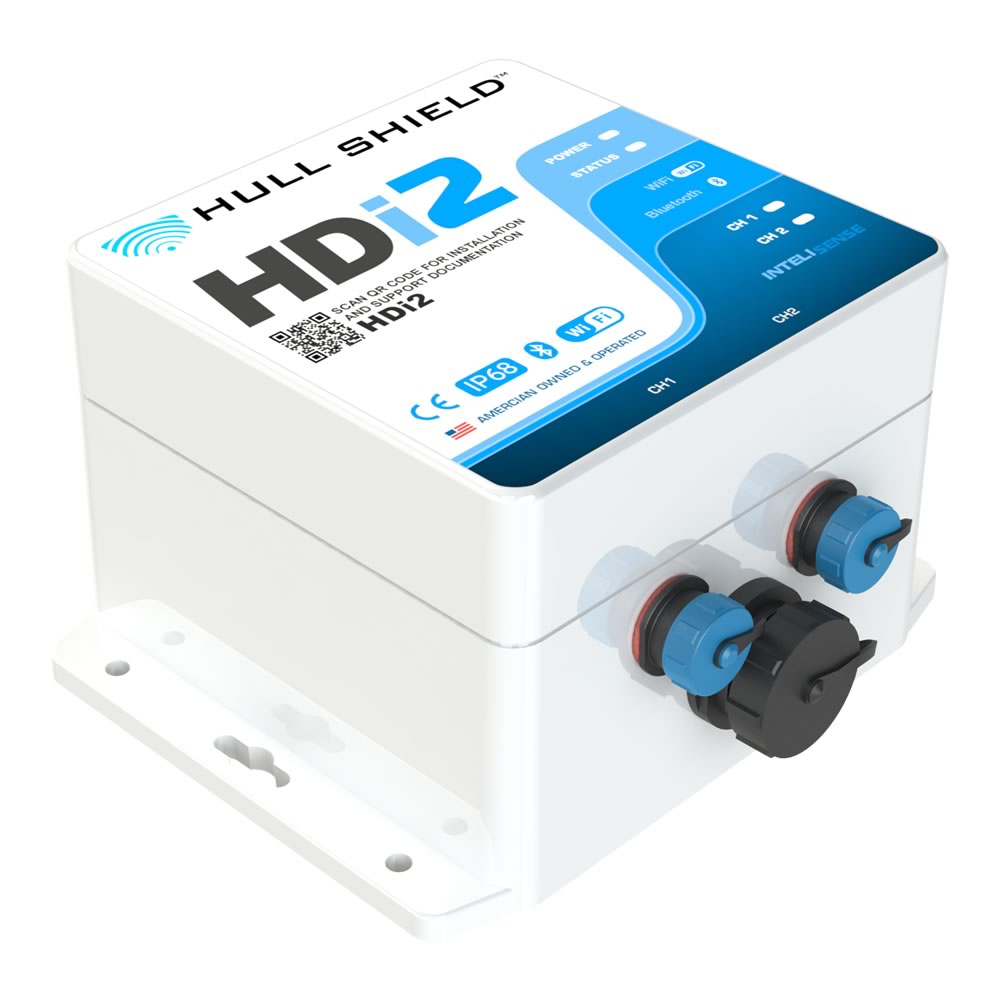

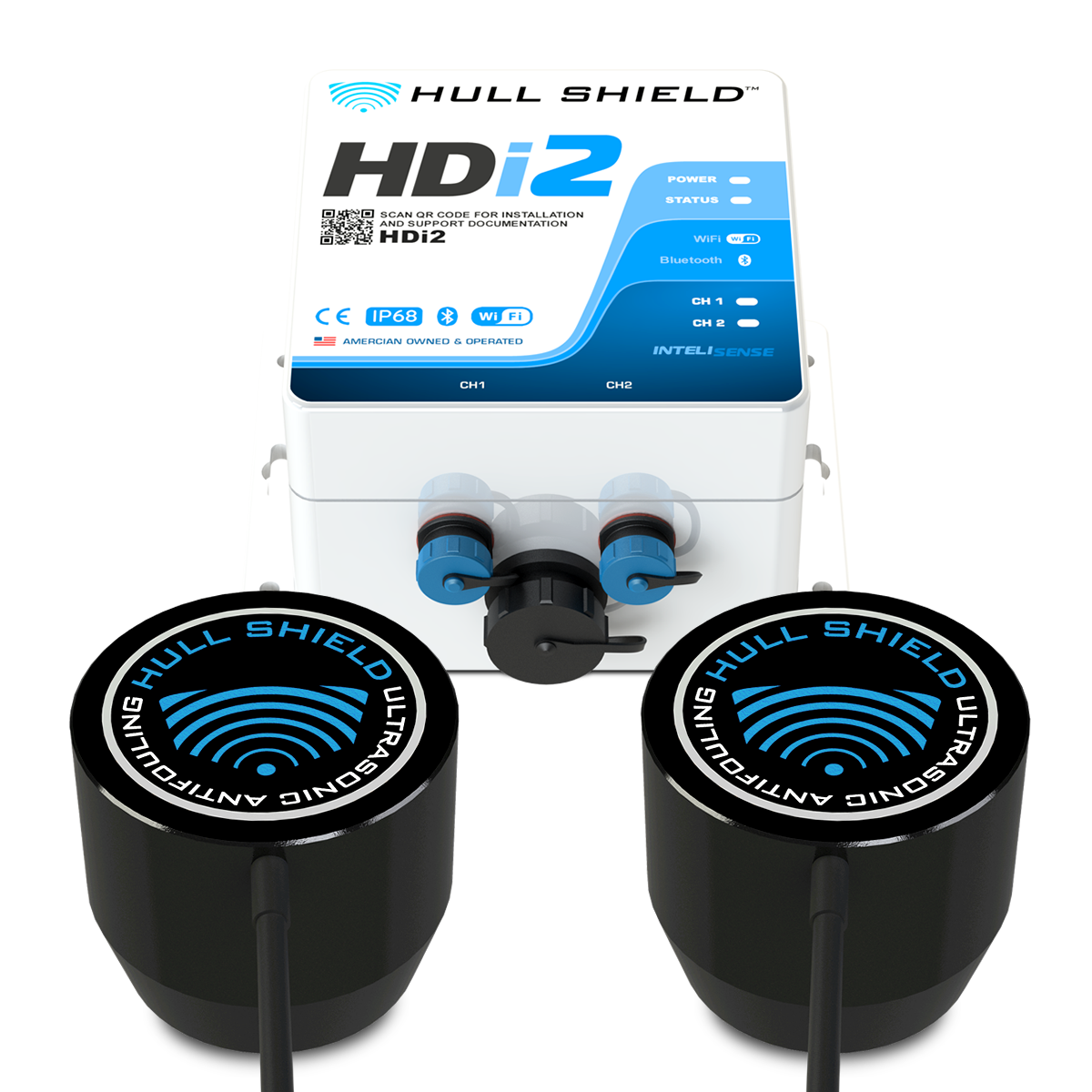

Hull Shield HDi2 Intelligent Ultrasonic Antifouling System

Hull Shield HDi2 Intelligent Ultrasonic Antifouling System

The Hull Shield® HDi Series delivers the most powerful ultrasonic antifouling system in it’s class. The HDi2 model provides intelligent control of up to two transducers, 60W of acoustic power per transducers, and up to 120W of focused pulse power when INTELIBOOST™ is activated. Wireless connectivity and access via a mobile app provides precise control. With integrated INTELISENSE™ Remote Monitoring, you can be alerted by SMS and email in case of a power failure or other issue occurring on your vessel. Hull Shield’s HDi series will protect your boat continuously – 365 days a year. Your vessel will operate at a higher level of performance and improved fuel efficiency year-round.

$1,099.00

Hull Shield HDi Series - Performance Ultrasonic Antifouling for your Boat or Yacht
The Next Generation of Ultrasound

Engineered to impeccable standards, the Hull Shield® HDi Series sets the standard for the next generation of powerful ultrasonic antifouling protection. Hull Shield’s HDi Technology delivers intelligent operation with access to powerful features. Wireless connectivity though a mobile-app coupled with web-based access gives you complete control at all times. With integrated INTELISENSE™ Remote Monitoring, you can track power consumption, adjust configurations, and even be alerted in case of a power failure or other issue.

Hull Shield HDi Series - Intelligent Ultrasonic Antifouling
Performance Ultrasonic Antifouling for Boaters

BEST-IN-CLASS POWER

The Hull Shield® HDi Series is in a league of it’s own, boasting up to 4X the focused ultrasonic power compared to competing products. Other entry-level ultrasonic products provide limited pulse-power, with most all restricted to maximum sustained pulses of 30W or less. With Hull Shield’s HDi technology, each transducer can provide a generous 60W focused pulse-power. With INTELIBOOST™ configured, the output can be extended up to 120W of synchronized pulse-power.

THE POWER ADVANTAGE

Aggressive fouling requires an equally aggressive deturent. Hull Shield HDi technology delivers the performance you need to fight back. HDi hardware was engineered fto exceed everything that came before it, delivering the most robust and efficient power delivery available. With HDi, you can be confident that your antifouling protection is effective.

Hull Shield HDi INTELISENSE remote monitoring app for ultrasonic antifouling.
Hull Shield Ultrasonic Antifouling INTELIESENSE Remote Monitoring

REMOTE MONITORING

The Hull Shield® HDi Series introduces an industry first for recreational boaters. INTELISENSE™ Remote Monitoring features an on-board Wifi connection to the internet that keeps you up-to-date on the status of your HDi and battery system with live updates. SMS text and email notifications will alert you of any adverse conditions including low-power and adverse conditions. You will also have complete control of your HDi system from wherever you are – modify configurations, review diagnostics, power profiles, and more.


Connect to your ultrasonic antifouling controller with WiFi and BlueTooth.
Hull Shield HDi INTELISENSE remote monitoring app for ultrasonic antifouling.

TRANSDUCER SYNCHRONIZATION

With Hull Shield’s HDi technology, each transducer can provide a generous 60W focused pulse-power – this is double the power over all other products in this class. However, special circumstances may require attention. With Hull Shield INTELIBOOST™, multiple transducers can be synchronized to effectively double the focused ultrasound energy. With INTELIBOOST™ configured, the output can be extended up to 120W of synchronized pulse-power.

CUSTOMIZABLE TUNING

Whether your HDi is installed on fiberglass, aluminum, steel, hulls, or drives, you can be confident that you’re receiving the absolute best ultrasonic antifouling protection available with an INTELITUNE™ equipped system. Hull Shield’s INTELITUNE™ technology let’s you select the a frequency profile tuned to your specific needs. Convenient presets can be easily set in the app and independently set for individual transducers. With INTELITUNE™, you’ll have access to fine-grained control and can specifically target or omit frequencies depending on the need.

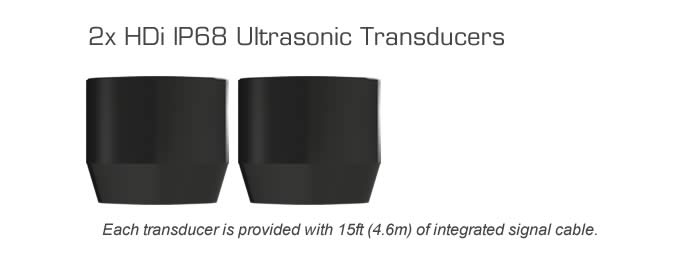

HDi Multi-Resonant Transducers

Hull Shield® HDi transducers are engineered to provide meaningful ultrasonic output across a broad spectrum. Operating between 20kHz and 42kHz, multi-resonant transducers ensure broadband protection.

HDi Series Features

The Hull Shield® HDi Series is loaded with industry-first features that you will not find anywhere else. Hull Shield HDi products provide the most effective and advanced antifouling protection available.

SMS Text Message and Email notifications can alert you of any adverse conditions including low-power, reports, power profile and schedule recommendations, damage to the system, and more.

Focus and amplify ultrasound up to 120W with INTELIBOOST™. Synchronous operation of transducer groups can deliver concentrated ultrasound for specialized applications.

Granular frequency control results in precision output that targets your unique application. Convenient presets compensate for hull materials, drive types, thrusters, and more.

An industry first – each transducer can be independently controlled for customized power delivery, frequency tuning, and schedule.

HDi systems offer genuine real-time continuous calibration, pulse-by-pulse, ensuring your systems delivers maximum effectiveness.

Want maximum power? It’s yours for the taking. Require extreme efficiency? We have your back. Easily adjustable presets will compensate for solar, wind, and limited power availability.

Fine-grained control allows you to adjust power delivery for each individual transducer. Adjust ranges, maximums, dynamic ranges based on battery voltage, time and day schedules, and more.

Let’s face it – space for mounting new hardware is probably limited on your boat. Adjustable mounting hardware ensure the perfect fit.

AccordionNeed to deactivate a transducer? No problem. Easily activate and deactivate individual transducers on the fly, remotely.
Content

Not so savvy with electronics? Rest easy – every HDi system is factory preset to operate fully-automatically. Simply take it out of the box and plug it in.

Access your HDi hardware with a direct connection from your phone – no internet required. A direct connection can be made to the device through Bluetooth or WiFi.

You’re never too far away. Maintain complete control of your HDi system from anywhere. Access all settings, controls, diagnostics, and reports.

Engineered for a lifetime. HDi systems are designed for easy care and maintenance – modular architecture ensures any adverse damage will not interfere with system operation and is easily replaced.

Looking for that perfect setting and need to track your changes? HDi provides a complete diagnostic history of runtime, power consumption, events, changes, alerts, and more.

Adverse conditions in your boat’s electrical system can cause electronics to freeze-up. Don’t worry, your HDi can detect power supply issues and take corrective action.

Dedicated LED indicators for each transducer provide visual feedback of the status of your system – no app, no guessing, no problem.

Each HDi controller is equipped with an internal speaker that can immediately alert you in the case of a power supply issue or fault.

Whether Lead-acid, AGM, Lithium-ion, or LiFePO4, rest easy knowing that your HDi system will provide the right power profiles and conditioning for your specific battery chemistry.

Unlike other electronic devices on your boat, Hull Shield HDi systems actively monitor battery type and voltages, actively implementing procedures to preserve and protect the health of your battery.

Your HDi system will modify and adapt its power consumption based on changing conditions. If your battery levels are depleting, the circuitry will automatically adapt to conserve power and battery health.

HDi systems are protected from reversed power and grounding situations occurring in your battery system or during installation.

Accidents happen. If a wire is damaged or severed, your HDi system will detect, isolate, and promptly alert you of the issue.

Active fault protection can seamlessly detect and isolate faults while mitigating downtime caused by adverse conditions.

HDi transducers are completely submersible, waterproof, and 100% galvanically isolated.

Every boat is a wet environment. Feel secure in knowing that your HDi controller is protected against water intrusion.

Your investment is always protected. Individual internally fused modular components ensure complete circuit protection and redundant operation.

Power systems in boats can be noisy and damaging to sensitive electronics. HDi systems integrate a robust power-filtering to ensure long-term and reliable operation.

In the world of ultrasonic antifouling, digital current control results in efficiency and fine-control. Hull Shield pioneered this technology, establishing it as an industry standard. Proprietary architecture provides precision control and extended product lifespan.

Each ultrasonic pulse is digitally controlled to reduce transducer stress, ensuring silent operation and transducer longevity.

Whether installing a new system or moving it to a different vessel, the HDi system outshines the competition by providing the simplest, fastest, and most secure connections possible.

Hull Shield is a true American company. All product design, engineering, and operations are done right here in the USA. We manufacture parts, assemble our products, package, and ship in the USA.

Did you break something? No sweat! While other companies coerce you into replacing the entire product, at Hull Shield we make every single part available for replacement and repair.

Hull Shield HDi2 Intelligent Ultrasonic Antifouling System

Specifications
Operating Characteristics
Average Power Adjustable 0W to 24W
Average Current (12V model) Adjustable 0A to 2A
Max Current (12V model) 10A
Average Current (24V model) Adjustable 0A to 1A
Max Current (24V model) 5A
Environment Operating Temp -22F to 140F (-30C to 60C)
Frequency Range
Frequency Range: Adjustable 20kHz to 42kHz
Pulse Duration: Adjustable
Max Pulse (single): 60W
Max Pulse (INTELIBOOST): 120W
Indication
Visual Indication: LED Indicators
Audio Indication: Piezo Audio Alert
Remote Indication: Text (SMS) & Email
Controller Protection
Fuse: Internal Fuse
Channel – Short Circuit Software (Detect and Isolate)
Reverse Polarity Integrated Circuit
Power Cable
Cable AWM PVC 3-Conductor
Conductors 16 AWG
Cable Dimensions 69″ x  0.25″ (152cm x 6.4mm)
Signal Cable
Cable AWM PVC 3-Conductor
Conductors 18 AWG
Cable Dimensions 15ft x  0.2in (4.6m x 5mm)

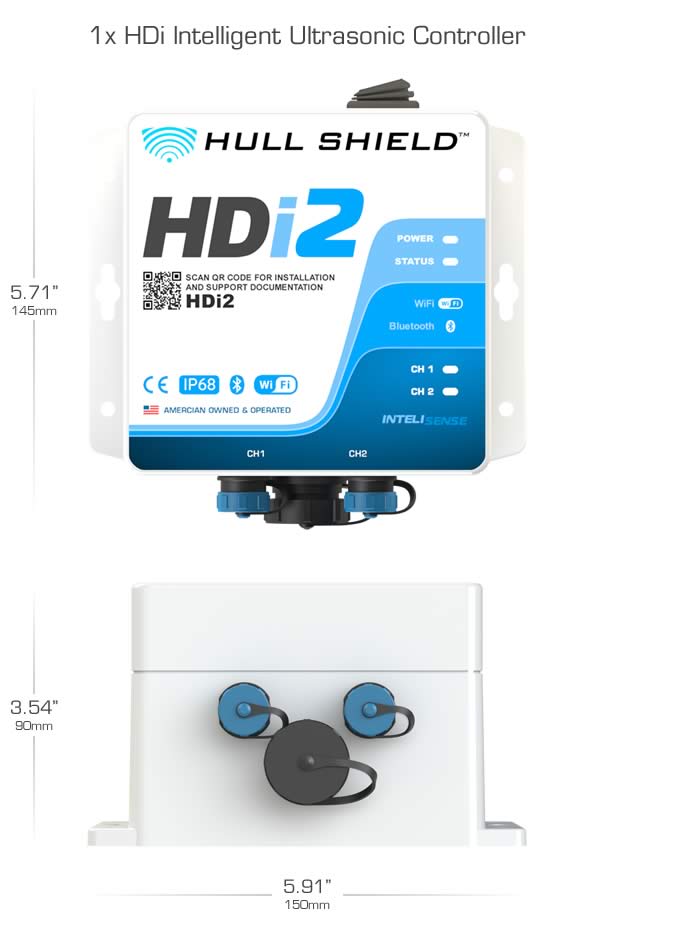

Dimensions
Enclosure Height 4.72″ (120mm)
Enclosure Height (overall) 5.71″ (145mm)
Enclosure Width 5.91″ (150mm)
Enclosure Depth 3.54″ (90mm)
Transducer Height 2.45” (62mm)
Transducer Body Diameter 2.67” (68mm)
Transducer Base Diameter 2.28” (58mm)
Transducer Base Area 4 in2 (25.5cm2)
Minimum Attachment Area 2.3 in2 (12.5cm2)
Ratings
Enclosure: IP68, NEMA 6P,12; UL94 V-0; UL746C 5VA
Signal Connectors: IP67; UL94 V-0
Signal Cable: UL2464; VW-1; 300V; 80C; RoHS
Power Cable: UL2464; VW-1; 80C; RoHS
Transducer Encapsulation: IP68; UL94 V-0

Hull Shield HDi2 Intelligent Ultrasonic Antifouling System
Choosing Your HDi System

It’s not complicated – we make it easy to select the perfect fit for your vessel. The HDi Series features a wide selection of systems which makes it easy to get exactly what you need. Your needs will be based on boat length and drive-type. The hull and running gear must be protected separately as they are acoustically isolated from each other by gaskets and seals which absorb ultrasound.

Use the chart below to discover which system you need. The chart is arranged by hull-type, hull length, and drive-type.

Running Gear Protection

The Hull Shield® HDi Series is in a league of it’s own, boasting up to 4X the focused ultrasonic power compared to competing products. Other entry-level ultrasonic products provide limited pulse-power, with most all restricted to maximum sustained pulses of 30W or less. With Hull Shield’s HDi technology, each transducer can provide a generous 60W focused pulse-power. With INTELIBOOST™ configured, the output can be extended up to 120W of synchronized pulse-power.

Running Gear Protection

Each drive-type has a unique requirement. Drive types having rudders require 2 transducers – one for the drive/prop and one for the rudder. All other drives require only one transducer per drive.

Use the chart below to discover which system you need. The chart is arranged by hull-type, hull length, and drive-type.

HDi Installation

Installation is simple and can be accomplished in a single day. No special tools are required, no hull-drilling, and the vessel does not need to be removed from the water. Transducers are attached with the supplied epoxy and connect to the central controller which is powered by your existing battery system – that’s it! Hull transducers are placed in the bilge, to the interior hull surface. For straight-shaft engines, transducers are attached to the the transmission motor mount. For pods and sail-drives, transducers are attached to the gear box. For stern-drives, transducers are attached to the inner-transom-bracket. On jet-drives, transducers are attached to the intake manifold.

Install Transducers

Transducers are installed with an expoxy adhesive that is supplied with your HDi system.

Route Signal Cable

Each transducer is connected to the controller with the supplied signal cable.

Install the Controller

The HDi controller is powered by your boat’s existing battery system. Simply connect to an available power source.

You’re All Set

Your Hull Shield® HDi systems is ready-to-go with factory presets an automated tuning that will provide you the best ultrasonic antifouling available. Access your HDi through the app to adjust your configurations and monitor your system.
